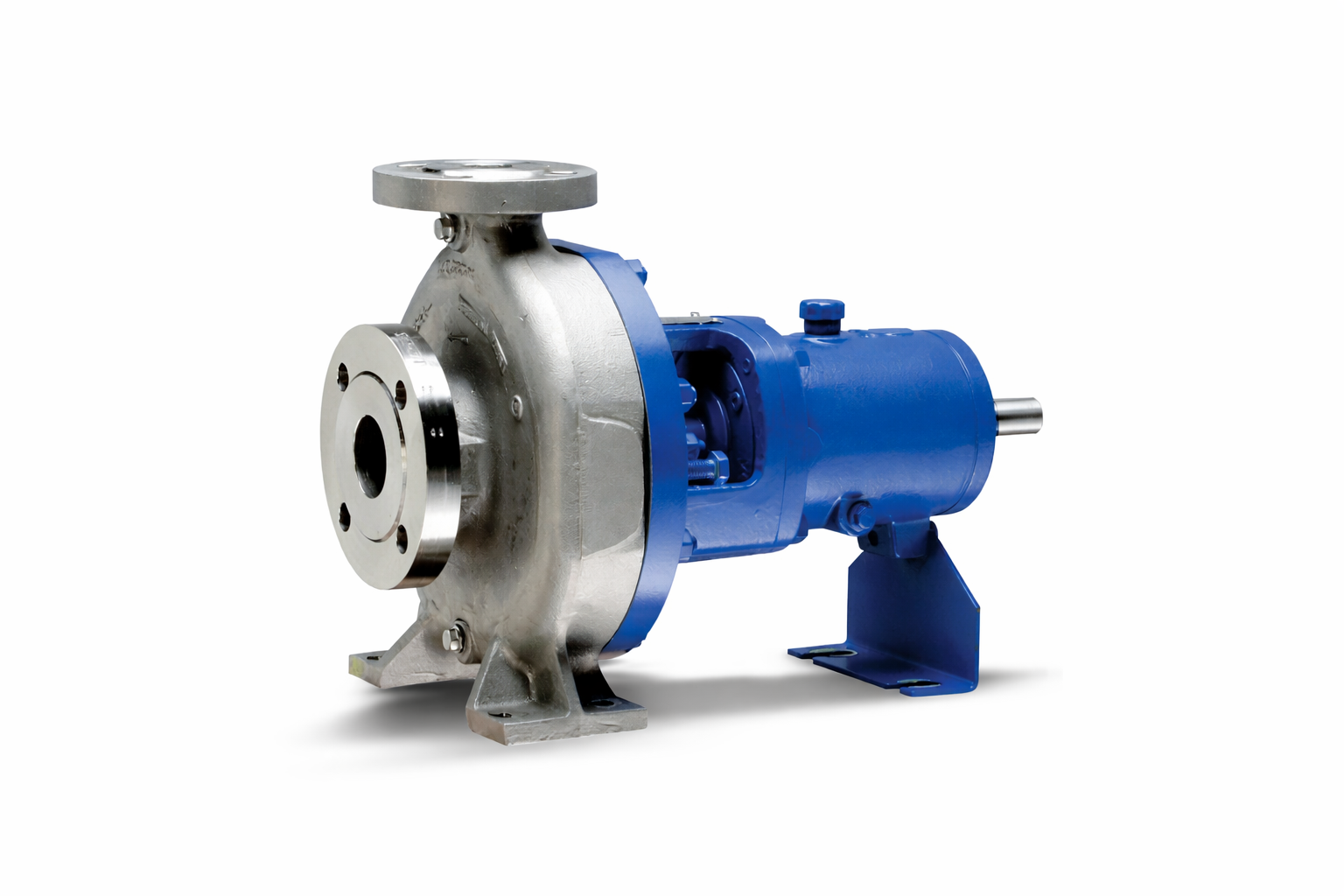

Thermic Fluid Pumps
A thermic fluid pump is a specially engineered centrifugal pump designed to handle hot oils and heat transfer fluids at extremely high temperatures often exceeding 300°C without the need for water-cooling systems. These pumps are widely used in thermal oil circulation systems where consistent heat transfer and safe operation are critical.
Unlike standard centrifugal pumps that require conventional cooling arrangements to manage elevated temperatures, thermic fluid pumps are built for high thermal stability, leak-proof performance, and efficient air-cooled operation. Their robust construction ensures reliable performance even under continuous high-temperature conditions.
The thermic fluid pump operates on the centrifugal principle. The motor drives the impeller, which creates centrifugal force to move hot oil or heat transfer fluid through the volute casing and into the system.
Main Applications
- Hot oil circulation systems
- Chemical processing plants
- Textile and dyeing industries
- Food processing units
- Bitumen and asphalt plants
- Plastic and polymer industries
- Thermal power plants
Technical Specifications
- Max. Flow Rate : 260 m3/hr
- Max. Head : 140 m
- Max. Allowed Working Pressure : 10 Bar
- Max. Allowed Working Temperature : 300° C
Features
- Integral Foot Mounted Design : The pump is integrally foot mounted and engineered for specific high-temperature ranges, ensuring stability and alignment during operation.
- Enhanced Thermal Isolation : Designed for superior thermal isolation of the volute casing, minimizing heat transfer to bearings and motor components.
- Maintenance-Free Mechanical Seal : Available with balanced or unbalanced standard mechanical seals that require minimal maintenance and offer reliable performance.
- Air-Cooled Operation : No additional water-cooling system required, reducing installation cost and system complexity.
- Grafoil Packing Option : Pump models available with grafoil packing at the stuffing box cavity for enhanced high-temperature sealing.
- High Thermal Stability : Capable of handling hot oils and heat transfer fluids at temperatures above 300°C.
- Leak-Proof Construction : Designed to ensure zero leakage and safe fluid handling in demanding industrial environments
