AODD Pump

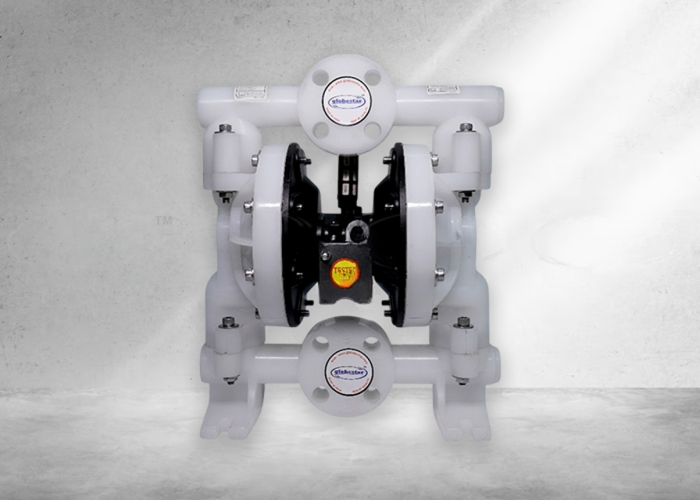

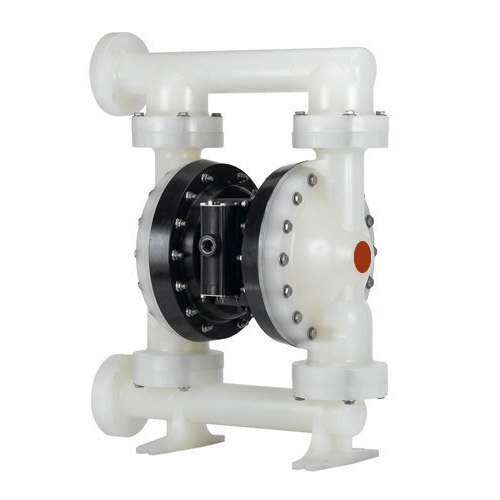

Air Operated Double Diaphragm Pump (AODD Pump)

An Air Operated Double Diaphragm Pump (AODD Pump), also known as a pneumatic diaphragm pump, is a type of positive displacement pump powered by compressed air. It is widely recognized for its versatility, reliability, and ability to handle challenging fluids in industrial environments.

Unlike hydraulic pumps that rely on hydraulic fluid, or conventional water pumps designed mainly for water transfer and priming, an AODD pump operates using compressed air to drive flexible diaphragms. These diaphragms move back and forth, creating suction on one side and discharge on the other, ensuring smooth and efficient fluid transfer.

Main Applications

• Chemical processing

• Pharmaceutical manufacturing

• Food and beverage production

• Water and wastewater treatment

• Mining and mineral processing

• Paints, coatings, and inks

Technical Specifications

• Flow Rate : 35 LPM to 350 LPM

• Maximum Suction Lift – Dry Condition: 1.45 m to 4.75 m (Rubber Diaphragm)
  0.50 m to 3.98 m (PTFE Diaphragm)

• Maximum Suction Lift – Wet Condition : 2.83 m (Rubber Diaphragm)
  0.90 m (PTFE Diaphragm)

• Maximum Particle Size : 2.0 mm to 6.35 mm

• Air Inlet Pressure : 2 – 6 kg/cm²

• Suction Port : 1/2" BSP to 50.80 BSP Threaded (12.07 mm)

• Discharge Port :1/2" BSP to 50.80 BSP Threaded (12.07 mm)

• Air Inlet Port : 3/8" BSP Threaded

• Air Exhaust Port : 1/2" to 3/4” BSP Threaded

Benefits

• Versatility :Efficiently handles sludges, slurries, corrosive substances, and flammable liquids.

• Self-Priming Capability : Self-primes up to 23 feet of suction lift and can run dry without damage.

• Durable Construction :Sealless design minimizes leakage and reduces maintenance requirements.

• Enhanced Safety : Air-operated mechanism eliminates electrical hazards, making it suitable for explosive environments.

• Low Maintenance : Fewer components and no lubrication needs reduce downtime and operational costs.
