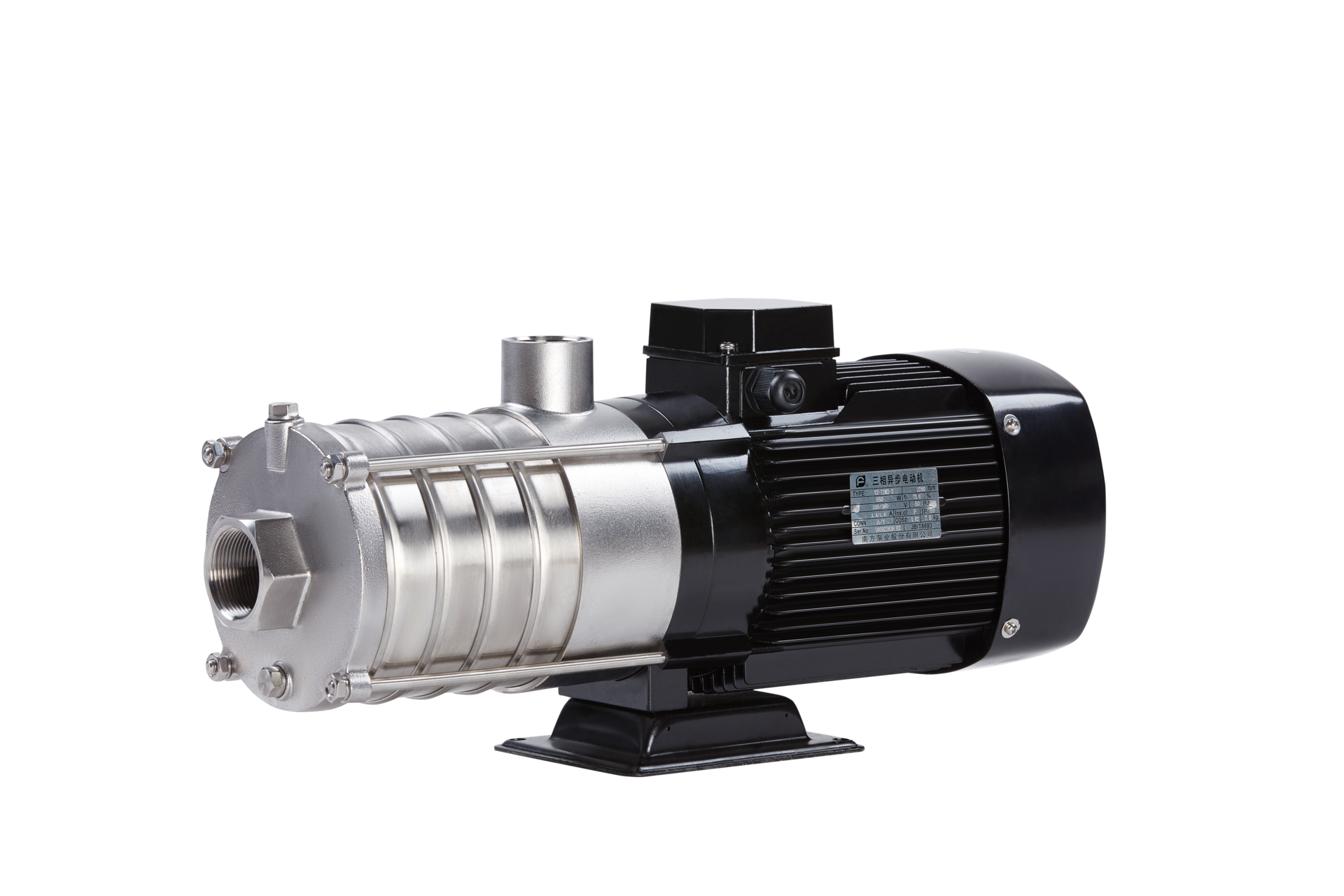

Horizontal Multistage Centrifugal Pumps
Horizontal multistage centrifugal pumps are engineered for applications requiring moderate to high total dynamic head with consistent and efficient performance. These pumps consist of two or more impellers mounted on a single horizontal shaft and enclosed within a common casing.
Each impeller functions as an individual stage, contributing equally to the total pressure generated. With up to six stages installed on a single shaft, the pump progressively increases discharge pressure at every stage, making it ideal for systems where higher head is required without compromising flow stability.
The pump operates on centrifugal force. Fluid enters through the axial suction inlet and passes through the first impeller, where velocity energy is converted into pressure. The liquid then moves sequentially through additional impellers, with each stage boosting the head by approximately the same amount. Finally, the pressurized fluid exits through the radial discharge outlet.
Main Applications
- Pharmaceutical and Biotech Applications
- Air Conditioning & HVAC Cooling Systems
- Water Treatment & Water Purification Plants
- Chemical Transfer Applications
- Industrial Cleaning Systems
- Heat Pump Systems
- Mould Temperature Control (MTC)
- Rubber Industry
- Windmill Cooling Systems
- Refrigeration & Chillers
- Manufacturing & Process Industries
- Plastic Industry
Technical Specifications
- Flow Range: 0.5 – 28.0 m³/hr
- Maximum Delivery Head: Up to 60 meters (6 Bar)
- Liquid Temperature Range: 15°C to +70°C
- Power Rating: Up to 4.4 kW
- Operating Speed: 2900 rpm
- Material of Construction (MOC): SS 304 / SS 316
Features
- Horizontal Multistage, Non-Self Priming Design: Suitable for clean liquid handling in pressurized systems.
- Long Shaft Electric Motor Coupling: Ensures stable alignment and efficient power transmission.
- Compact Construction: Space-saving design with small pump size.
- Axial Inlet & Radial Outlet: Optimized hydraulic performance.
- CHLF Series Construction: Inlet and outlet connections in cast stainless steel; remaining components in fabricated stainless steel.
- Material Options Available: SS 304 and SS 316 for superior corrosion resistance and durability.
