Motorized Barrel Pumps

Motorized Barrel Pumps

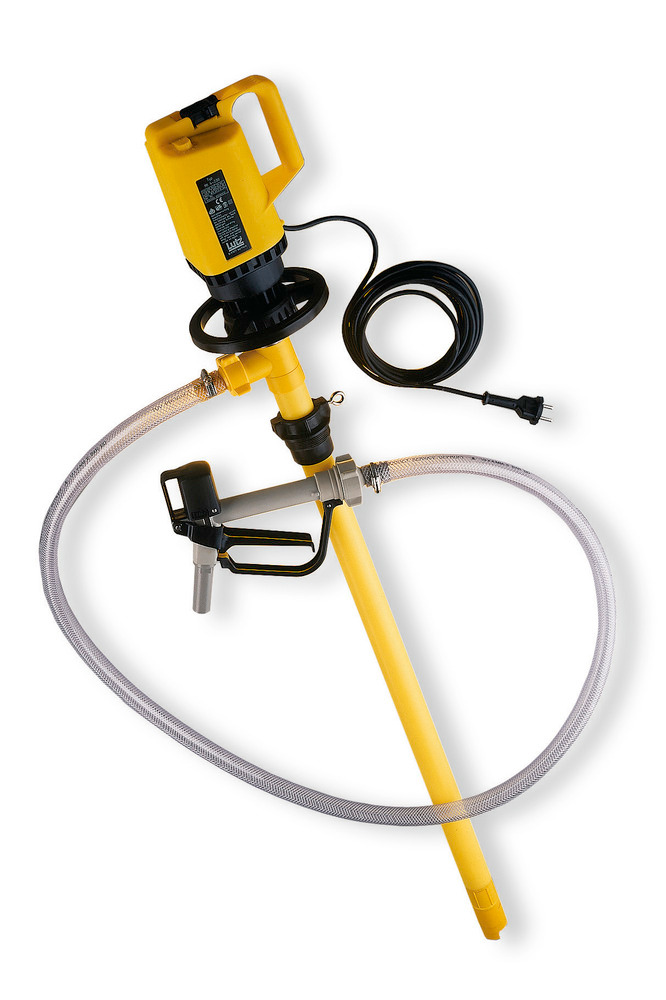

Motorized Barrel Pumps are specially designed for transferring liquids from barrels, drums, carboys, and containers directly into reactors, storage tanks, or process vessels. These pumps offer a clean, efficient, and controlled method of handling liquids across industries such as chemical processing, pharmaceuticals, food, automotive, and manufacturing.

Different liquids require different tube materials to ensure safety, compatibility, and long service life. Barrel pump tubes are available in:

• Aluminium : Suitable for engine oils, lubricants, hydraulic oils, diesel, and other non-reactive liquids

• SS316L (Stainless Steel) : Ideal for reactive chemicals, solvents, food supplements, and low-concentration acids (below 30%)

• Polypropylene (PP) : Recommended for acids and toxic chemicals that may react with stainless steel

• SS316L Electropolished (Sanitary Finish) : Designed for pharmaceutical and hygienic applications, especially solvent transfer

• PVDF : Excellent chemical resistance for aggressive fluids

Main Applications

• Chemical and solvent transfer from drums

• Lubricant and oil filling in automotive workshops

• Food-grade liquid transfer (juices, edible oils, syrups)

• Transfer of cleaning agents, mild acids, and alkalis

• Diesel and light fuel oil handling

• Barrel-to-process line liquid feeding

Technical Specifications

• Tube Length (mm) : 1000-1200 mm (1 to 1.2 meters)

• Head : 7.5 m

• Motor Horsepower : 0.5/ 0.6 / 1 /1.5

• Power Source : Electric

• Max Flow Rate(Litre/Min : 150 LPM

• Max Flow Rate : 50 LPM

Features

• Motor Type : Electric motor (230V / 415V AC) with optional flameproof configuration.

• Construction Material : SS304 wetted components (SS316 available on request).

• Tube Length : 1000 - 1200 mm, suitable for standard 200-liter drums.

• Flow Capacity :30 - 80 LPM (varies based on fluid type and model)

• Viscosity Range :Handles fluids up to 1000 cP

• Surface Finish :Corrosion-resistant design; food and pharmaceutical-grade options available

• Installation :Clamp or threaded mounting with hose/nozzle compatibility

• Safety Features :Overload protection with IP55-rated motor enclosure

• Optional Accessories :Inline flow meter, discharge hose, and dispensing nozzle
