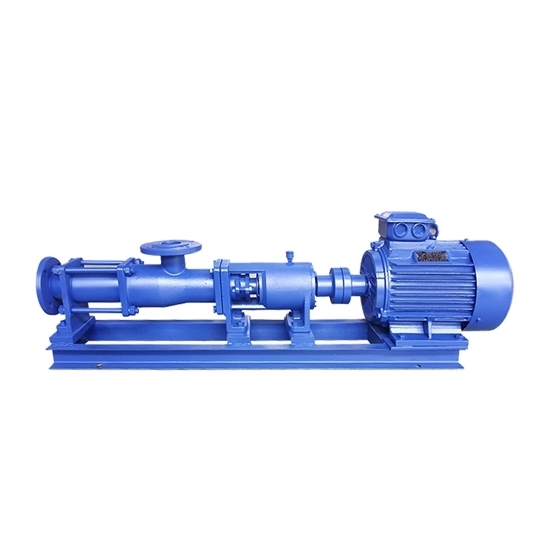

Screw Pumps

Screw Pumps

Screw pumps are a vital part of the dry compressed gas transfer pump family and are widely used in industrial applications requiring reliable, continuous, and pulsation-free flow. As positive displacement pumps, they use one or more rotating screws to move fluids or gases smoothly along the screw shaft.

These pumps are particularly popular in industrial vacuum systems, often operating alongside Roots blowers, and serve as oil-free roughing pumps in high vacuum and ultra-high vacuum applications.

Screw pumps operate using two precisely engineered, counter-rotating screw rotors designed to rotate toward each other. This synchronized movement creates sealed cavities between the screw threads and the pump housing.

Main Applications

• Oil & Gas Industry

• Food & Beverage Processing

• Chemical & Pharmaceutical Industry

• Food & Beverage Industry

• Environmental & Wastewater Management

• Marine & Industrial Applications

• Vacuum Systems

Technical Specifications

• Power : 4 hp (3 kW)

• Flow Rate : 5 m3/h

• Pressure : 1.2 MPa

• Max Speed : 960 r/min

• Suction Flange Diameter : 50 m

• Discharge Flange Diameter : 40 mm

• Max Granule Size : 2.5 mm

• Max Fibre Size : 35 mm

Features

• Versatility Across Fluid Types : Screw pumps efficiently handle a broad spectrum of media from low-viscosity liquids to highly viscous materials.

• Low Pulsation & Gentle Handling : These pumps provide a smooth, continuous, and non-pulsating flow.

• Self-Priming Capability :Screw pumps can achieve high suction lift capabilities (typically up to 7.5–8 meters), enabling reliable operation even when the pump is installed above the fluid source.

• High Efficiency & Abrasive Tolerance : With excellent volumetric efficiency, screw pumps maintain consistent flow even under varying pressures.

• Low Noise & Reduced Maintenance : The rotary motion of intermeshing screws ensures quiet operation with minimal vibration.
