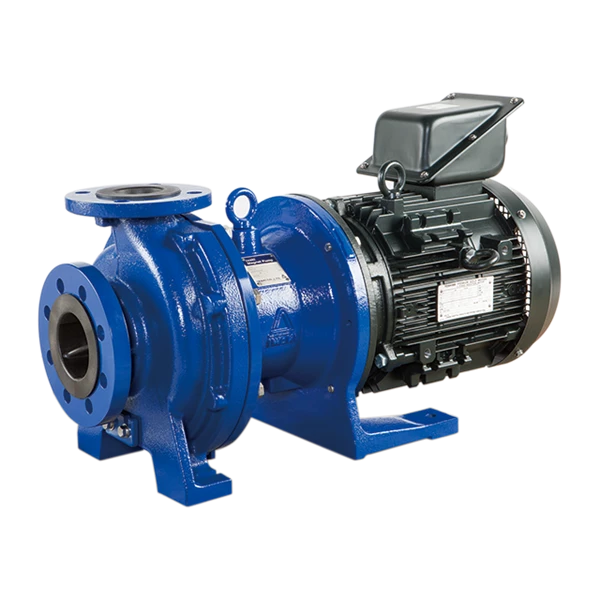

Magnetic Drive Pumps
A magnetic drive pump is a type of centrifugal pump that uses permanent magnets to create a seal between the motor and the impeller. Unlike conventional centrifugal pumps that rely on a direct shaft connection and mechanical seal, mag-drive pumps use magnetic attraction and repulsion to transfer rotational energy.
This hermetically sealed, non-contact energy transfer system prevents fluid leakage and protects against environmental contamination.
In industries where safety, cleanliness, and reliability are non-negotiable, magnetic drive pumps offer a powerful and efficient solution. Designed without traditional mechanical shaft seals, these pumps use advanced magnetic coupling technology to eliminate leakage and reduce maintenance making them ideal for handling corrosive, toxic, and hazardous fluids
Main Applications
- Chemical Processing
- Pharmaceutical Manufacturing
- Water Treatment Plants
- Petrochemical Industries
- Acid & Alkali Transfer
- Electroplating Systems
- Food & Beverage (Non-contaminating transfer)
Technical Specifications
- Delivery Size : Up to 100 mm
- Capacity : Up to 300 m3/hr
- Speed : 2900, 1450, 980 RPM at 50 Hz | 3500, 1750 , 1150 RPM at 62 Hz
- Temperature : (-)50° to 180° C
Features
- Seal-Less Construction : Eliminates mechanical seals, preventing leaks and fluid loss.
- Leak-Proof & Hermetically Sealed Design : Ideal for hazardous, toxic, corrosive, and volatile liquids.
- Reduced Maintenance : Fewer wear components mean lower maintenance costs and longer service life.
- Contamination-Free Operation :Prevents product contamination in sensitive processes such as pharmaceuticals and chemicals.
- Energy Efficient Performance :Magnetic coupling ensures smooth torque transmission with minimal energy loss.
- High Corrosion Resistance : Available in materials like polypropylene, PVDF, and stainless steel for aggressive chemicals.
- Safe for Hazardous Environments : Reduces risk of environmental exposure and workplace accidents.
